CodeIgniterの学習 67 - Zend ServerをLinodeのVPS上に入れてCodeIgniterを動かしてみた。VPSで遊ぶ -その4
今日はいろいろてんこ盛りなエントリー。
この前借りた linodeのfremontのVPS(Linode360)に、
このあいだ出た Zend Server を突っ込んでみた。
んでその上にこの前作った ヤフーの画像検索apiと形態素解析apiの画像検索お遊びアプリをのせてみた。
ちなみにCodeIgniterのログ機能をZend_Logに置き換えている。
(CodeIgniterの学習 63 - ヤフーの画像検索apiと形態素解析apiを組み合わせてお遊びアプリを作る-その8(現在のコード完成度100%) http://d.hatena.ne.jp/dix3/20090114/1231941174)
linoode - http://www.linode.com/
zend - http://www.zend.com/
実験URL(VPS上)
実験URLはここ: http://pizw.com/
なぜか4文字ドメイン com , org , net , biz , infoをセットで持っている俺。以前放出されてたのを捕獲しておいた。
動作画面イメージ
画面はこんな感じ(firefox以外だと崩れるかも。):
メモリ360MBしかないから、あまりいじめないでね。
(画像はyimg.comへのimageタグなので、転送量は大したこと無いけど。)
微妙に遅いのはヤフーのapi側への接続ウェイトをわざと入れているのと、その反応待ちが主原因です。
キャッシュにヒットしている場合は反応は速いと思う。
あといろいろ弄って調教中だから不通状態もあるかも。
穴があったら入りたいのでご指摘ください。
VPSにZend Serverをインストールしたメモ
まだベータ版らしいので、元に戻すかも。
ちなみに、テスト環境でやらないとたぶん悲しいことになるので注意してね。
(いろいろインストール+php周りのパッケージが削除されるから)
apache2+lighthttpd(管理画面用)+php5+ZendFrameworkてんこ盛り な構成みたい。
マニュアル見れば分かるけど一応書いておく。
1)マニュアルのダウンロード
http://www.zend.com/en/products/server/downloads-all
で、ダウンロードを進めると、pdfのZendServer-CE-Installation-Guide_4.0_Beta なるものがダウンロード出来る。
このPDFを読み進めてみると、Ubuntu君の場合は、aptitudeで一発インストール出来るらしい。
以下全部ルート権限で作業。
2) /etc/apt/sources.listの編集
最終行に、 deb http://repos.zend.com/deb/ce ce non-free を追加
3)レポジトリのパブリックキーを追加
wget http://repos.zend.com/deb/zend.key -O- |apt-key add -
4)aptitude update の実行
5)zend-server-ceのインストール 実行
aptitude install php5-extra-extensions-zend-ce zend-ce
php5-extra-extensions-zend-ce の方に mbstring.soとかが有るので、この2つ。
mysqlのインストールとか、httpd.confとかは眠いので説明省略。
(80番ポートを開ける ufw allow http も忘れずに。)
(どうせ試す人は好き者だろうし、自分で調べるだろうからいいよね。)
Zend Serverの管理画面
インストールが終わると、 http://localhost:10081 又は、https://localhost:10082 でZend Serverの管理画面に繋げられる。
(管理画面へはputtyでsshポートフォワーディング経由で接続)
(以下画面べたべた)
まだ細かく見てないけどなんかかっこいいよ。
全体的にColdFusion Administratorっぽいね。

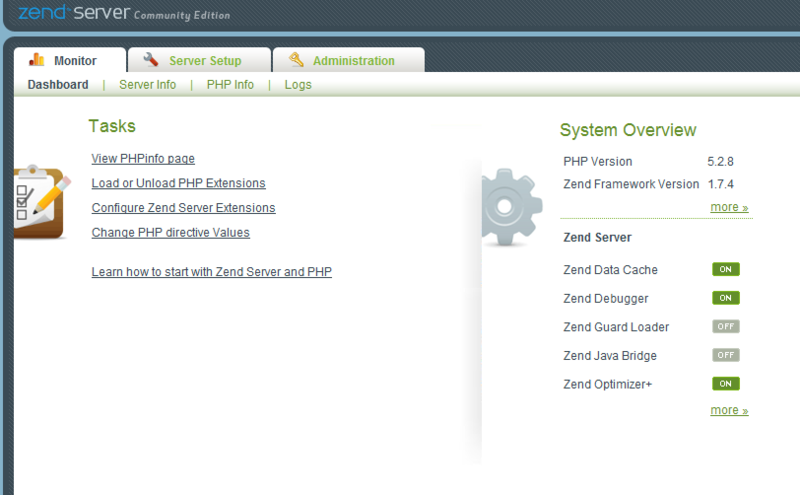

ダッシュボードカコイイ

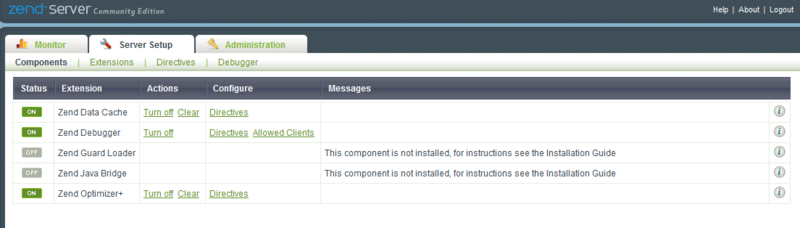

コンポーネントの使用制御と、設定が出来る。
extensionの使用制御と、設定が出来る。使わなそうなのはここでOFF出来る。
内部で
/usr/local/zend/etc/php.iniとか、/usr/local/zend/etc/ext.d/*.ini とかを書き換えて、設定しているようだ。

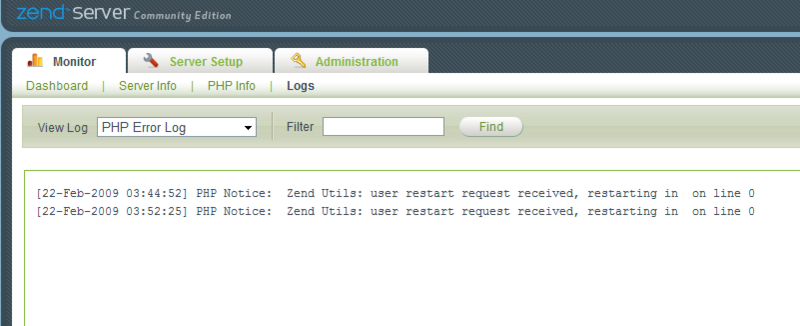

ログ確認画面。
ログは、/usr/local/zend/var/log 以下にある。(CodeIgnierのログは別)

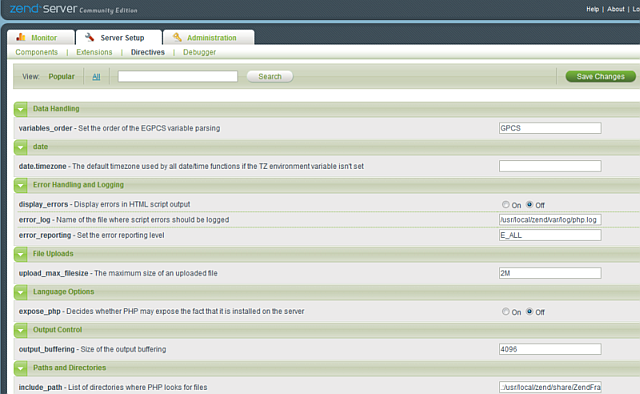

php.iniの内容も、Directivesで設定出来る。

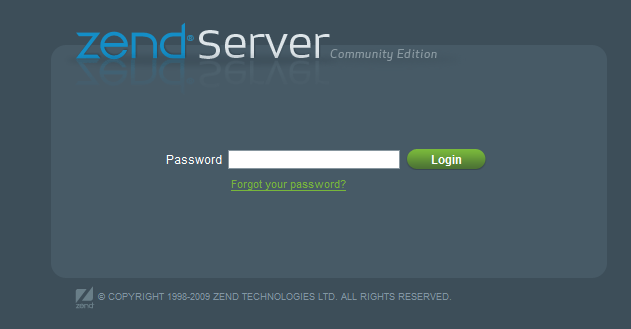

次回からはこんなログイン画面。
CodeIgniterで作ったお遊びアプリを設置する。
詳しくは眠いので省略。
ドキュメントルートは /var/www/
だったので、
ここに index.php とcssファイルとかだけ置いて、
systemとapplicationディレクトリはドキュメントルート外に追い出している。
CodeIgniter上のZend Frameworkを/usr/local/zend/share/ZendFramework以下を使うようにする。
以前のエントリー
CodeIgniterの学習 43 - ログ出力をZend_Logに置き換える http://d.hatena.ne.jp/dix3/20081117/1226870236
の時に、
ドキュメントルート/index.php内で、
ini_set( 'include_path', APPPATH . 'my_classes/' );
として、
application/my_classes/Zend/以下のZend Framework一式を使っていたが、
今回ZendServerでそれが不要になるのでこの記述を外し、
ついでにapplication/my_classes/Zend/ 以下は削除した。
これでZend Frameworkを入れ替える手間が減るぜい。
動かしてみる。
うん普通にうごくっぽい。以外にあっさり ZendServerに乗っかった。
これでこそZend Frameworkとも融合できるってもんよ。
早く正式版にならないかなー。
dpkg -l |grep zend してみる
こんな感じ (community edition)通常のパッケージ末尾に -zend-ce付きのものに置き換わる。(インストール場所も基本 /usr/local/zend/以下になる)
モリモリインストールされてしまうが、不要なものは管理画面側で不使用にしてロードしないので一応問題ない。
# dpkg -l|grep zend ii libapache2-mod-php5-zend-ce 5.2.8+b56 server-side, HTML-embedded scripting languag ii libframework1-zend-ce 1.5.2-1+b26 Zend framework's library portion [does not i ii libmssql-zend 1.0-1+b18 Needed shared libraries in order for the PHP ii liboci-zend 1.0-1+b4 Needed shared libraries in order for the PHP ii lighttpd-zend-ce 1.4.18-1+b54 dedicated lighttpd server for Zend Community ii php-bcmath-zend-ce 5.2.8+b19 PHP extension for arbitrary precision mathem ii php-bz2-zend-ce 5.2.8+b20 PHP bz2 extension. ii php-calendar-zend-ce 5.2.8+b19 The calendar PHP extension presents a series ii php-ctype-zend-ce 5.2.8+b19 PHP ctype extension. ii php-curl-zend-ce 5.2.8+b20 PHP supports libcurl, a library created by D ii php-data-cache-zend-ce 4.0.32+b51 Zend's extension for PHP data caching and pa ii php-debugger-zend-ce 5.2.17+b43 Zend’s extension for server side debugging ii php-dev-zend-ce 5.2.8+b27 Zend Server development package. Includes PH ii php-exif-zend-ce 5.2.8+b17 The PHP exif extension enables you to work w ii php-fcgi-zend-ce 5.2.8+b34 PHP FastCGI binary used by the Zend Server's ii php-fileinfo-zend-ce 5.2.8+b16 PHP fileinfo extension. ii php-ftp-zend-ce 5.2.8+b17 PHP extension that implements client access ii php-gd-zend-ce 5.2.8+b19 PHP GD extension. ii php-gettext-zend-ce 5.2.8+b17 PHP extension that implements an NLS (Native ii php-gmp-zend-ce 5.2.8+b18 PHP extension that enables work with arbitra ii php-iconv-zend-ce 5.2.8+b18 This PHP extension provides an interface to ii php-imagick-zend-ce 5.2.8+b3 Imagick is a native php extension to create ii php-imap-zend-ce 5.2.8+b18 PHP extension that enables operation with th ii php-intl-zend-ce 5.2.8+b4 The internationalization extension (Intl) is ii php-json-zend-ce 5.2.8+b18 This PHP extension implements the » JavaScr ii php-ldap-zend-ce 5.2.8+b18 LDAP PHP extension. LDAP is the Lightweight ii php-mbstring-zend-ce 5.2.8+b17 The mbstring PHP extension provides multibyt ii php-mcrypt-zend-ce 5.2.8+b18 This PHP extension provides an interface to ii php-memcache-zend-ce 5.2.8+b17 The PHP Memcache extension provides handy pr ii php-mhash-zend-ce 5.2.8+b18 PHP extension for mhash. Mhash can be used t ii php-mime-magic-zend-ce 5.2.8+b17 PHP mime_magic extension. ii php-ming-zend-ce 5.2.8+b19 PHP extension for Ming. ii php-mssql-zend-ce 5.2.8+b18 PHP extension that allows access MS SQL Serv ii php-mysql-zend-ce 5.2.8+b22 PHP extension that allows access to MySQL da ii php-mysqli-zend-ce 5.2.8+b22 The mysqli PHP extension allows access to th ii php-oci8-zend-ce 5.2.8+b23 PHP extension for OCI8. Allows access to Ora ii php-odbc-zend-ce 5.2.8+b17 PHP odbc extension. ii php-optimizer-plus-zend-ce 4.0.48+b56 Zend’s extension for using opcode caching ii php-pcntl-zend-ce 5.2.8+b17 Process Control support for PHP. Implements ii php-pdo-mysql-zend-ce 5.2.8+b20 PHP extension that implements the PHP Data O ii php-pdo-oci-zend-ce 5.2.8+b28 PHP pdo-oci extension. ii php-pdo-pgsql-zend-ce 5.2.8+b21 PHP extension that implements the PHP Data O ii php-pgsql-zend-ce 5.2.8+b19 PHP extension for PostgreSQL. PostgreSQL dat ii php-posix-zend-ce 5.2.8+b17 PHP extension that provides an interface to ii php-shmop-zend-ce 5.2.8+b17 PHP extension that allows PHP to read, write ii php-soap-zend-ce 5.2.8+b17 The SOAP PHP extension can be used to write ii php-sockets-zend-ce 5.2.8+b19 PHP sockets extension. ii php-sqlite-zend-ce 5.2.8+b17 PHP extension for the SQLite Embeddable SQL ii php-sysvmsg-zend-ce 5.2.8+b16 The sysvmsg PHP extension. ii php-sysvsem-zend-ce 5.2.8+b16 PHP extension that provides semaphore functi ii php-sysvshm-zend-ce 5.2.8+b16 PHP extension for Sys V shared memory. ii php-tidy-zend-ce 5.2.8+b23 PHP extension for the Tidy HTML clean and re ii php-tokenizer-zend-ce 5.2.8+b16 PHP extension that provides an interface to ii php-wddx-zend-ce 5.2.8+b17 PHP wddx extension. ii php-xmlreader-zend-ce 5.2.8+b17 The XMLReader PHP extension is an XML Pull p ii php-xmlrpc-zend-ce 5.2.8+b19 PHP extension that enables writing XML-RPC s ii php-xmlwriter-zend-ce 5.2.8+b17 PHP XMLWriter extension wrapper around the l ii php-xsl-zend-ce 5.2.8+b17 The XSL PHP extension implements the XSL sta ii php-zem-zend-ce 5.1.53+b41 Zend Extension Manager. Used for loading Zen ii php-zendutils-zend-ce 1.0.39+b46 PHP extension for use of the Zend Server Com ii php-zip-zend-ce 5.2.8+b15 This PHP extension enables you to transparen ii php5-common-extensions-zend-ce 4.0.0-1+b58 PHP commonly used extensions. ii php5-extra-extensions-zend-ce 4.0.0-1+b58 Additional PHP extensions. ii php5-unix-extensions-zend-ce 4.0.0-1+b58 PHP Sys V and POSIX extensions. ii zend-base-ce 1.0.0-1+b60 Basic files needed for Zend Server Community ii zend-ce 4.0.0-1+b58 Zend web application server package. ii zend-ce-doc 4.0.2+b15 Zend CE documentation. ii zend-extensions-ce 4.0.0-1+b58 Zend Server modules. ii zend-framework-ce 1.7.4+b30 Zend's PHP Framework. ii zend-gui-ce 4.0.5+b127 Zend Server Community Edition’s Administra
とりあえず今日はここまで。
ベンチマーク比較とかは気が向いたらやってみる。
実験サイトの http://pizw.com/ は、
対象サイトをはてな限定+エロイ写真は検索できないようにしているので、
変なキーワードとか個人名とかは入れないでね。みんなの最新検索キーワードに残しちゃうから。
(まずかったら出ないようにするから良いけど)
